COMBI 16/64/80

Product Overview :

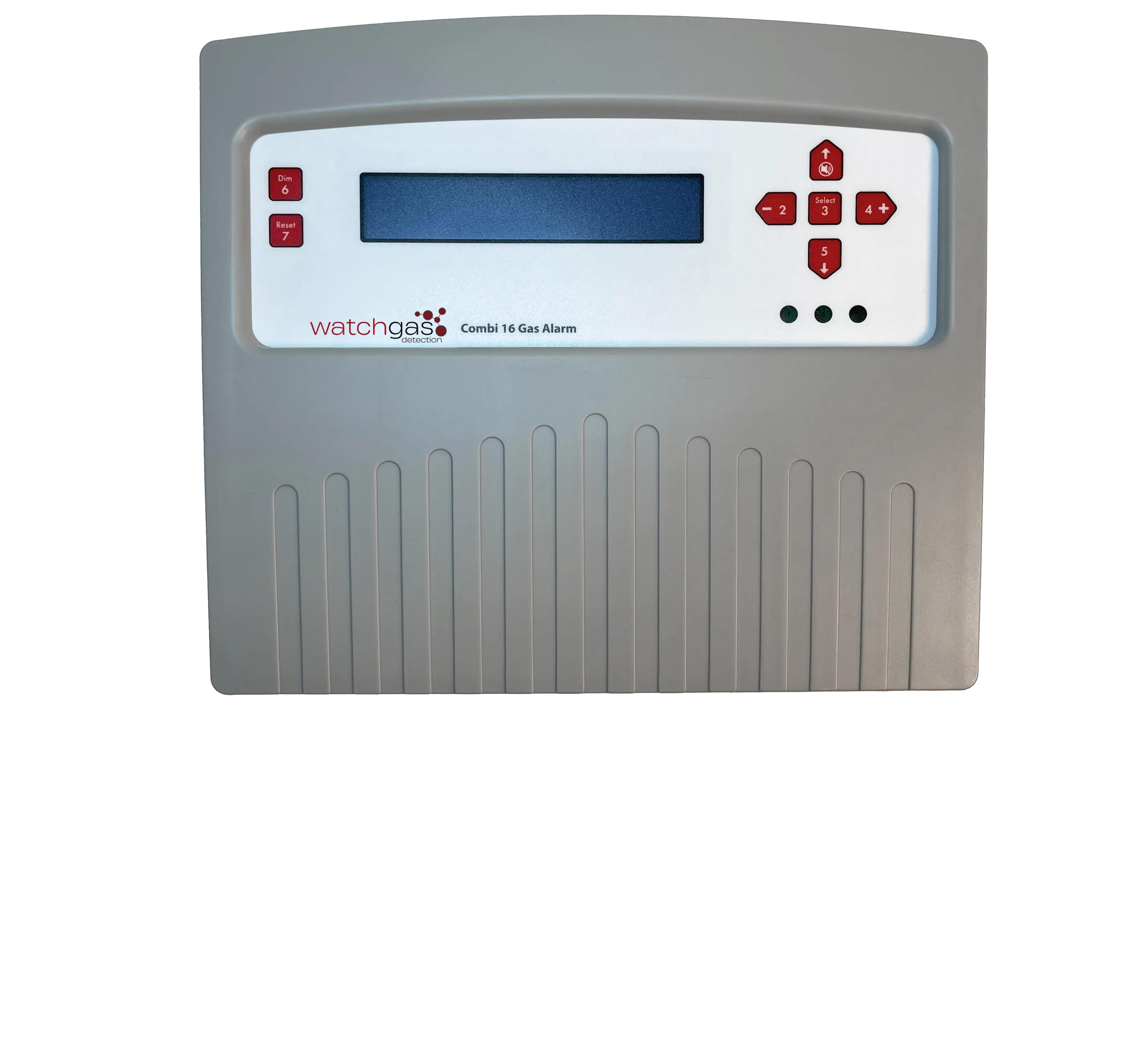

The Combi 16/64/80 is a versatile and scalable gas detection control panel designed for commercial, industrial, and hazardous area applications. It supports both addressable and direct sensor connections, making it ideal for various monitoring environments, including public buildings, tunnels, car parks, breweries, boiler rooms, water treatment facilities, process plants, and more.

With the ability to network multiple controllers, the system can scale up to 1,024 addressable sensors, providing comprehensive safety monitoring across large facilities.

Key Features :

• Supports 1 to 64 addressable sensors for flexible system configurations
• 1 to 16 direct 4-20mA sensors (2/3 wire) for additional sensor integration
• 1 to 8 plugin direct catalytic sensor cards for enhanced gas detection
• Network capability for up to 16 controllers, enabling 1,024 addressable sensors
• Single 4-core sensor network (addressable) for simplified installation
• Parameter setup via PC or front panel for easy system configuration
• 3 adjustable alarm levels with time-to-alarm functionality
• Addressable relay modules available in 4, 8, and 32-way configurations
• Continuous data logging via PC (CombiSoft software option)
• Automatic safety check diagnostics and system surveillance
• Remote system management for efficient monitoring

Applications :

• Commercial and public buildings
• Car parks and tunnels
• Industrial manufacturing and process plants
• Water treatment facilities
• Breweries and boiler plant rooms
